Inpixon nanoANQ Chirp

Inpixon nanoANQ Chirp RTLS AnchorRTLS Anchor With Unrivaled Range and Deployment-Scale

The Inpixon nanoANQ Chirp is a deployment-ready RTLS anchor built for long-range location tracking applications. It leverages unique chirp RF technology to deliver long 500 m positioning range with 1-2 m location accuracy.

With industrial-grade performance, the Inpixon nanoANQ Chirp provides accurate and reliable positioning in large-scale deployments for many types of facilities – including harsh environments like factories and underground mines. This anchor can operate tracking, ranging, and two-way communication concurrently for versatility that supports a variety of location-aware use cases.

Featuring a compact PCBA and overall form factor, integrated internal antennas and advanced anchor performance, the Inpixon nanoANQ Chirp helps you use real-time location to transform industrial operations and make them safer, more agile, and productive.

Get a Quote Technical Specifications

Key Benefits

Long-Range Chirp (CSS)

Experience long-range positioning up to 500 m with 1-2 m location accuracy.

Resilient

Robust against RF interference, multipath fading, the doppler effect and more for reliable performance in some of the harshest industrial environments.

Scalable

Above-industry scalability that helps support applications involving thousands of concurrently tracked assets.

Inpixon nanoANQ Chirp Highlights

Compact & Durable

The Inpixon nanoANQ Chirp delivers a compact and versatile form factor with integrated internal antennas for simplified installations in different types of environments. Configurable IP65 or non-IP rated anchor housing to meet varying deployment needs.

Virtual Anchor Sync

Patented virtual anchor synchronization and TDoA methodology helps support deployments of thousands of concurrently tracked tags.

Two-Way Communication

Through its air interface, the Inpixon nanoANQ Chirp RTLS anchor supports bidirectional payload exchange to and from the location engine server and individual tags.

Power Supply

The Inpixon nanoANQ Chirp features two power supply options – Power-Over-Ethernet (PoE) and USB. The optional USB port can be used as an alternative power source. Both sources can be used to supply power and the PoE connector acts as a connection to the transport network and location server.

Adjustable Power Amplifier

The device’s configurable RF power output provides a power amplifier that is adjustable from -17 to +20 dBm.

Simple Management

The Inpixon nanoANQ Chirp is easy to install, maintain and can be configured remotely via a UDP connection. With the Inpixon nanoANQ Configurator software tool, management and expansion of your RTLS infrastructure is made even more simple.

Technical Specifications

Typical Range
300-500 m (1)
Typical Location Accuracy
1-2 m (1)
Signal Detection Rate
Up to 900 blinks/s
Number of RF Channels
2
RF Technology
Chirp Spread Spectrum (CSS)
Frequency Range
ISM band 2.4 GHz (2.4 – 2.4835 GHz)
RF Output Power
Configurable -17 to +20 dBm
Receive Sensitivity (80MHz/1μs)
-88 dBm
Transport Network
Ethernet 100 base TX
Power Supply
PoE (802.3af) - recommended, USB – optional (2)
IP Address
Automatic, DHCP
Operating Temperature Range
-40 to +85 °C
Dimensions
With IP65 Configuration:
196.3 x 145.5 x 34.2 mm
With Non-IP Configuration:
196.3 x 118.3 x 34.2 mm
Weight
With IP65 Configuration: 365 g
With Non-IP Configuration: 255 g

1  With optimal conditions and deployment, dependent on topology and antenna
2 USB requires 1 A min. and a cable ≤ 1 m

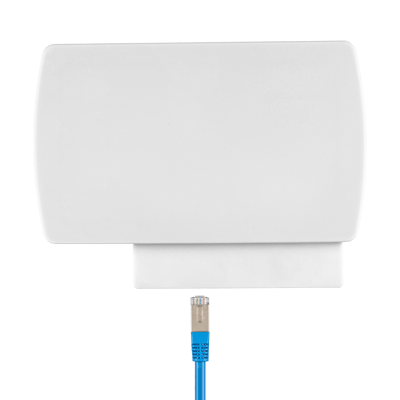

Corresponding image shows anchor with IP65 configuration

Product photography for the Inpixon nanoANQ Chirp RTLS anchor its internal circuitry.
