Inpixon RTLS Mesh

With Inpixon RTLS Mesh, you don’t need to run power or networking cables to the anchor devices, enabling you to save time and money. Avoid cabling costs and have your RTLS solution up and running within hours instead of days. Goodbye wiring, hello quick ROI!

Request a Demo

Smart, Scalable, Wireless Location Tracking

Inpixon RTLS Mesh is an advanced real-time location system (RTLS) solution built on proven mesh technology. Designed for seamless scalability and flexibility, it eliminates the need for costly wired infrastructure. Simply peel-and-stick your anchor nodes and activate the batteries for quick plug-and-play convenience.

Inpixon RTLS Mesh leverages a self-forming, self-healing mesh network to provide real-time tracking of assets, vehicles, equipment, and personnel. Our mesh-based approach enables faster deployment and less infrastructure than traditional RTLS.

Inpixon RTLS Platform

Why Choose Mesh Over
Wired RTLS Systems?

For use cases where locational precision/accuracy of 1-3 meters is sufficient, Inpixon RTLS Mesh provides a rapid-deployment, cost-effective and flexible tracking solution.

Lower Installation Costs

No extensive cabling or fixed infrastructure is required.

Greater Flexibility

Easily expand or reconfigure tracking zones without rewiring.

Reliable, Self-Healing Network

If one node fails, data automatically reroutes through other nodes.

Faster Deployment

Get up and running quickly, even in temporary or evolving environments.

Platform Ready

Fully compatible with the Inpixon RTLS platform.

Scalable for Nearly Any Environment

Ideal for facilities of all sizes, from single buildings to multi-site campuses and even outdoor.

Example Uses for
Inpixon RTLS Mesh

Asset Tracking

Monitor the real-time location of equipment, vehicles, tools, and materials in warehouses, factories, and outdoor yards. With instant visibility, your team can reduce search times, prevent losses, and optimize asset utilization.
Environmental Monitoring

Leverage mesh-enabled sensors to monitor critical environmental conditions such as temperature and humidity. This ensures compliance with safety standards, protects sensitive materials, and enhances process control.
Location-Based Automation

Enable automated workflows triggered by asset locations, such as inventory updates, process changes, or equipment status notifications. This improves productivity, reduces manual effort, and increases overall efficiency.

A Complete RTLS Solution -
Built for Fast Deployment and Minimal Infrastructure

Inpixon RTLS Mesh combines mesh-enabled tags, anchors, gateways, and a location platform in a self-organized and decentralized system.

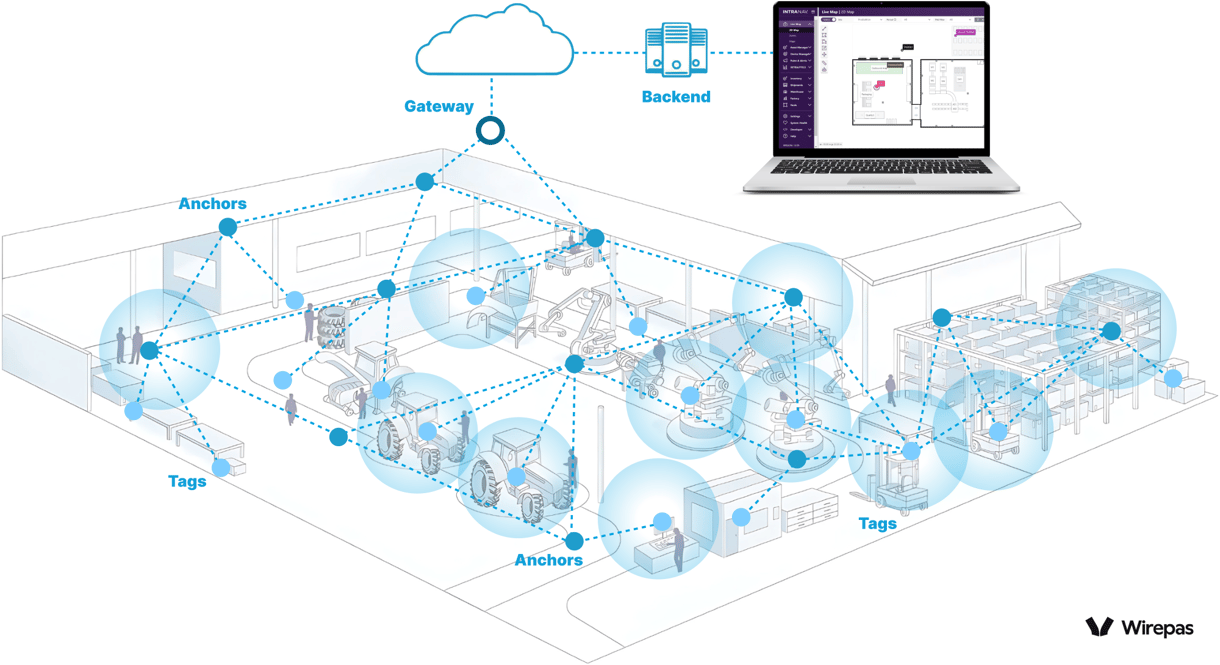

How Do Anchors, Tags and Gateways Work Together
in a Mesh-Based Location System?

Each component in the Inpixon RTLS Mesh plays a specific role in enabling real-time location awareness –
from detecting movement to transferring data to the platform.

image (7) 1 (1)

Anchors

Anchors receive signals from tags and forward data through the gateway to the network, enabling accurate tracking and flexible zone configurations – without central infrastructure.

Gateways

Gateways connect the tracking network to the RTLS platform, transmitting data securely for smarter, real-time decision making.

Inpixon RTLS Mesh
Success Stories

Success Story

BMW Group Uses RTLS For Inventory Management

Success Story

Streamline Production With Automation & Location Tracking

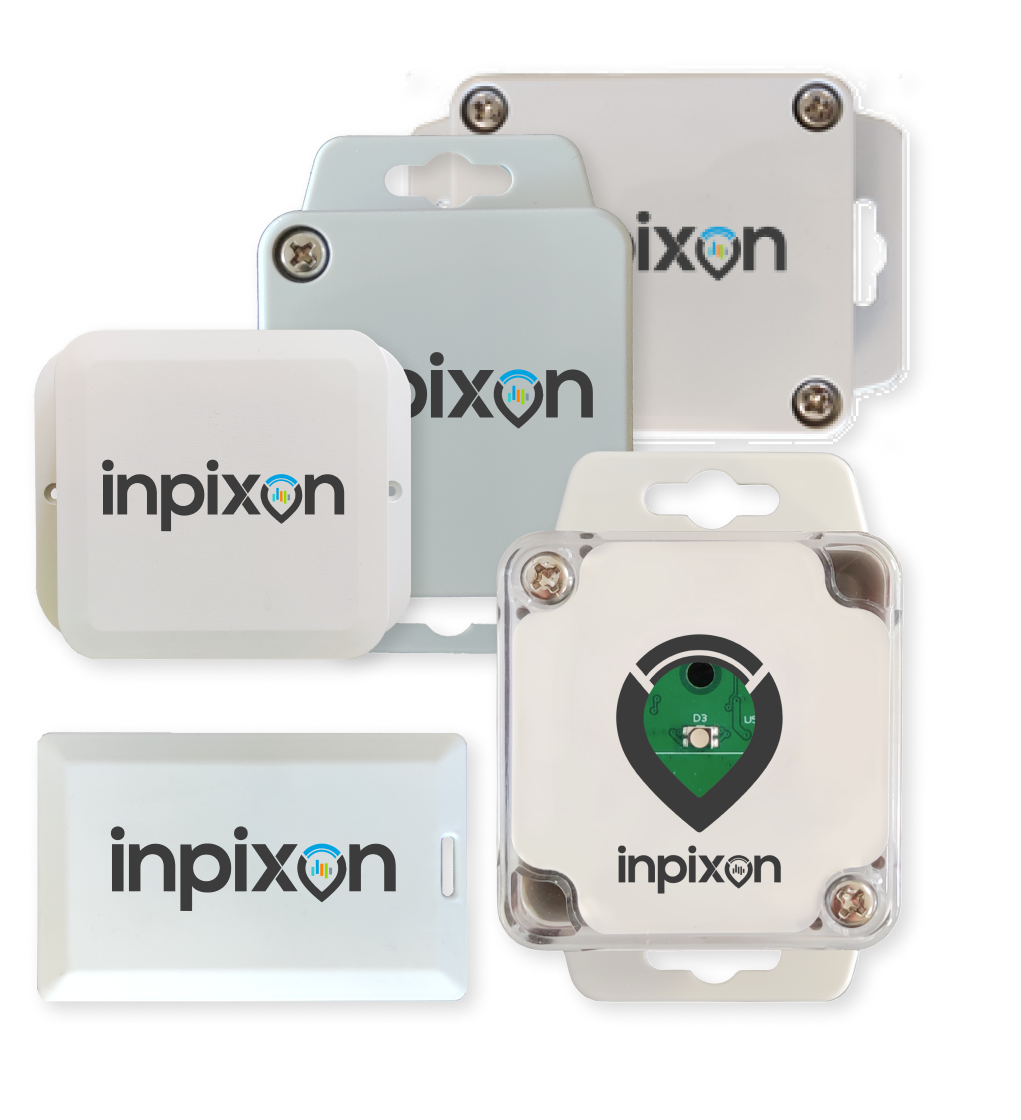

Inpixon RTLS Mesh – Complete Solution: Devices & Platform

Inpixon RTLS Mesh offers a range of reliable devices, including asset tags, wearable trackers, and gateways, seamlessly integrated with the Inpixon INTRANAV RTLS platform for centralized data management. Designed for indoor and outdoor tracking, these devices feature long-lasting batteries and advanced motion detection, providing precise location data for optimized operations in industries like logistics, manufacturing, and warehousing.

RTLS Platform and Seamless Data Integration into ERP

Inpixon's RTLS platform ensures real-time forklift tracking, boosting supply chain visibility. This technology-agnostic solution automates processes, providing actionable insights for strategic decisions and optimizing overall equipment effectiveness. Seamlessly integrating data from various RTLS technologies and IoT sources into ERP, MES, and WMS systems, it streamlines operations for efficient forklift tracking and operational excellence.
TinyGateway POE Wirepas
Compact Gateway
A low-power, cost-efficient mesh gateway with a lightweight plastic enclosure, ideal for seamless integration.

Flexible Connectivity: Supports Ethernet (PoE) or USB, ensuring seamless integration into various network infrastructures.

Ideal for IoT Applications: Perfect for warehouses, factories, smart facilities to streamline operations.

Compact and Cost-Effective: Lightweight design with low power consumption for scalable and budget-friendly deployments.

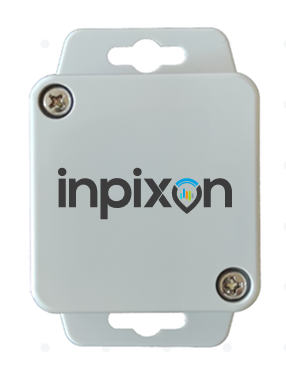

Brick Wirepas
Durable Asset Tag/Anchor
Featuring an IP67-rated enclosure, the Brick Wirepas ensures reliable performance in industrial and outdoor environments, leveraging mesh technology for seamless and energy-efficient connectivity.

Battery Powered: Equipped with a replaceable 3.6V lithium battery pack, offering ultra-long battery life and easy maintenance.

Advanced Features: Includes a 3-axis accelerometer for precise motion detection and operates on Nordic nRF52832 technology with firmware based on Wirepas libraries.

Certified for Various Applications: Compliant with certifications like EN60601-1-2 (medical), EN50121-3-2 (railway), and ECE R10-06 (automotive) for robust versatility.

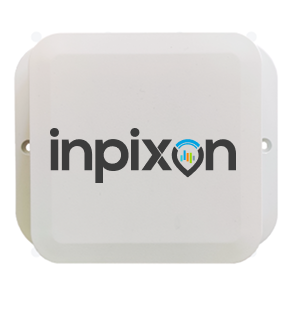

Forte+ Wirepas
Durable Asset Tag
IP67-rated enclosure for reliable performance in outdoor and industrial environments, leveraging mesh technology. Can be used as a mobile tag or fixed beacon.

Battery Powered: Replaceable CR123A lithium battery for long-lasting operation and easy maintenance.

Advanced Features: Equipped with a 3-axis accelerometer for motion detection and firmware based on Wirepas libraries.

Flexible Mounting Options: Available with or without flanges for versatile installation.
Forte+ LED Wirepas
Rugged Asset Tag
IP67-rated enclosure for reliable use in outdoor and industrial environments, leveraging mesh technology for seamless wireless connectivity.

Long Battery Life: Replaceable CR123A lithium batteries for easy maintenance and extended operation.

Smart Features: Equipped with a 3-axis accelerometer for motion detection and firmware based on Wirepas libraries.

Flexible Mounting: Available with or without flanges, plus a high-visibility RGB LED for easy identification.

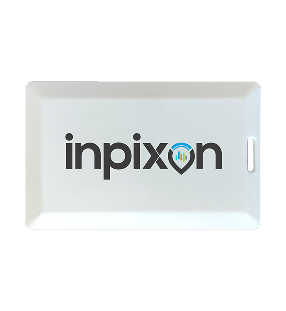

Card Wirepas
Wearable Tag
Compact smart-card form factor with IP67 protection, leveraging mesh technology. Ideal for identifying and locating people or operators.

Battery Powered: Powered by a thin, non-replaceable lithium battery (CP224247) for long-lasting use.

Advanced Features: Equipped with a 3-axis accelerometer for motion detection and firmware based on Wirepas libraries.

Additional Functionality: Includes a call button for geo-localized alerts or notifications.

Inpixon RTLS Mesh FAQ

What makes mesh-based RTLS unique compared to other location tracking systems?

Mesh-based RTLS is a wireless, scalable, and self-healing solution designed for seamless operation across large facilities. Unlike many other systems, Inpixon RTLS Mesh is offered as a complete solution, including rugged hardware, advanced mesh technology, and the centralized Inpixon INTRANAV RTLS platform. This ensures seamless integration, reliable performance, and simplified implementation.
How accurate is an mesh-based RTLS?

RTLS mesh typically provides location accuracy in the range of 1-3 meters, depending on the environment and configuration. While it may not achieve UWB's centimeter-level precision, it is well-suited for most operational needs.
What industries can benefit most from Inpixon RTLS Mesh?

Inpixon RTLS Mesh is well suited for industries such as (intra)logistics, manufacturing, warehousing, mining. Common applications include asset tracking, location-based automation, personnel safety, workflow optimization, and process monitoring.
What are the power options for Inpixon RTLS Mesh devices?

Anchors and tags are powered by replaceable batteries optimized for ultra-low energy consumption, ensuring years of operation with minimal maintenance.
Can Inpixon RTLS Mesh integrate with existing systems?

Yes, Inpixon RTLS Mesh offers seamless integration with ERP, WMS, MES and other systems, making it easy to incorporate into existing workflows.
What is required for setup?

The plug-and-play design allows for quick and simple installation, requiring only a PoE gateway and wireless tags and anchors. Minimal infrastructure means minimal disruption.
Does Inpixon RTLS Mesh comply with modern security standards?
Yes, Inpixon RTLS Mesh complies with the appropriate data security standards. It utilizes AES128 encryption for BLE communication to ensure secure data transmission and protects all network communication using advanced protocols. Additionally, the system is compatible with industry-specific certifications, such as:
- EN60601-1-2 (medical equipment),
- EN50121-3-2 (railway applications), and
- ECE R10-06 (automotive EMC compliance).
When hosted in the cloud, Inpixon RTLS Mesh operates within a secure Virtual Private Cloud (VPC) and uses TLS/MQTTS encryption to safeguard sensitive data. These measures ensure compliance with globally recognized security standards, making it suitable for industries requiring high levels of data protection.
Is Inpixon RTLS Mesh suitable for outdoor use?

Yes, Inpixon RTLS Mesh is designed for both indoor and outdoor applications, ensuring seamless tracking across diverse environments.
What is the latency when Inpixon RTLS Mesh operates in the cloud?

When hosted in the cloud, Inpixon RTLS Mesh has a minimum latency of one minute. Depending on customer needs, the latency can be extended up to a day to reduce data transmission frequency and significantly lengthen the battery life of the tags. This flexibility ensures a balance between operational requirements and energy efficiency.
How does Inpixon RTLS Mesh maintain network reliability?

The system uses mesh's advanced self-healing technology to dynamically adjust and maintain connectivity, even in high-interference or dynamic environments.
Can Inpixon RTLS Mesh be integrated into Inpixon´s INTRANAV platform?

Yes, Inpixon RTLS Mesh is fully integrated in the Inpixon INTRANAV platform, supporting seamless integration and centralized management of real-time location data. INTRANAV is unified solution for tracking and managing assets, people, and processes across all environments supporting more than 10 different tracking technologies.
What is the difference between Inpixon RTLS Mesh and other mesh systems on the market?

Inpixon RTLS Mesh combines hardware, self-healing mesh technology, and the Inpixon INTRANAV RTLS platform into a unified solution. This eliminates the need to source components from multiple vendors and ensures everything works seamlessly together.
